Photo 1 of 2
Compact track loader · Kubota D1105 engine

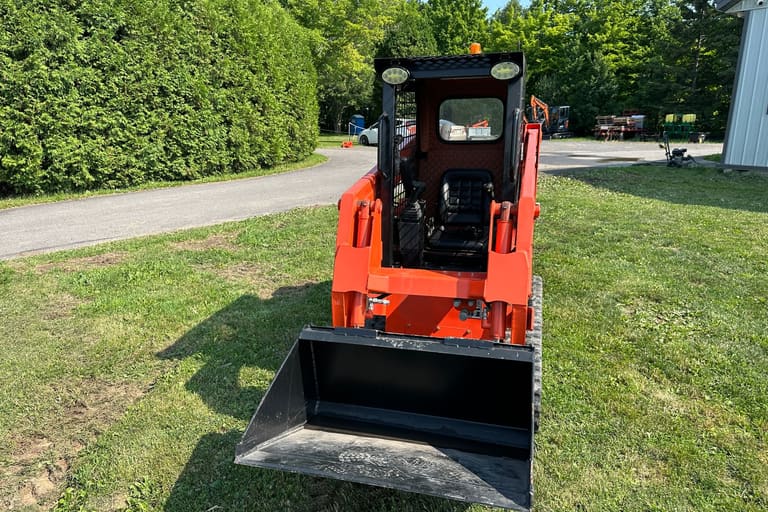

TK35TK35 compact track loader, 1.55 tonne, Kubota D1105 engine
A 993 mm chassis, under one metre, that fits through a back-yard gate or a barn aisle where an ordinary loader stays outside. Tracks spread the weight, so it works on turf and soft ground without tearing everything up.
- Landscaping
- Back yards
- Farm and barn work
- +3
$19,800+ tax · CAD
18-month parts warranty included
On order · 3-week delivery
Quote within 24 business hours
Taxes and transport to your site extra, confirmed in writing with the quote. Price effective July 28, 2026.
- 993mm
- Width
- 24hp
- Kubota engine
- 1.55t
- Operating weight
- 18months
- Parts warranty
What it actually does
Width is the spec that decides the purchase. At 993 mm, the TK35 fits through most fence gates and the wide doorways of farm buildings. If your current loader forces you to take down a fence to get into a yard, this is the machine that solves it.
993 mm (39 in)
Overall width
It needs an opening of roughly 40 inches.
1,550 kg (3,417 lb)
Operating weight
Tracks spread the weight, so they mark turf less and work better in mud and on slopes.
0.2 m³
Bucket capacity
- Landscaping
- Back yards
- Farm and barn work
- Renovation
- Snow removal
- Material handling
Full specifications
Performance
- Operating weight
- 1,550 kg (3,417 lb)
- Bucket capacity
- 0.2 m³
- Max lifting force
- 380 kg (838 lb)
- Max working height
- 3,093 mm (10 ft 2 in)
- Max pin height
- 2,765 mm (9 ft 1 in)
- Max dumping height
- 2,123 mm (7 ft)
- Loading reach
- 650 mm (26 in)
- Bucket discharge angle
- 30 °
- Travel speed
- 9 km/h
- Gradeability
- 30 %
Dimensions
- Overall length
- 2,870 mm (9 ft 5 in)
- Overall width
- 993 mm (39 in)
- Overall height
- 1,915 mm (6 ft 3 in)
- Bucket width
- 915 mm (36 in)
- Wheelbase
- 880 mm (35 in)
- Ground clearance
- 150 mm (6 in)
Engine
- Engine
- Kubota D1105
- Power
- 18.2 kW (24 hp)
- Cooling
- Water
- Fuel
- Diesel
Capacities
- Fuel tank
- 40 L
- Hydraulic tank
- 40 L
Common questions
What is the warranty?
An 18-month parts warranty.
Who repairs it if it breaks?
The engine is a Kubota D1105, a common block in Quebec that machinery garages and heavy equipment mechanics know well. Many of the parts are standard international components that are easy to source. Machine-specific parts are ordered from the factory: allow about a month.
How wide an opening does it need?
The chassis is 993 mm, which is 39 inches, so it needs an opening of roughly 40 inches. It fits through most fence gates, barn doors and the wide doorways of farm buildings, which typically run 42 inches and up. It does not fit through a 36-inch pedestrian door. Measure your narrowest opening before ordering, and send it to us and we will confirm.
Tracks or wheels, which should I choose?
Tracks spread the weight, so they mark turf less and work better in mud and on slopes. Wheels are faster on hard surfaces. For landscaping and soft ground, take tracks.
What sets this machine apart, in detail?
Tracks spread 1,550 kg across a large contact area. On established turf, in spring mud or on a slope, it keeps working where a wheeled loader ruts and spins. That is the difference between finishing a landscaping contract and coming back to repair the ground.
Come put it to work.
Demo at our site in Saint-Nicolas, or talk to our team: 514 869-6796
